Asrock SP2C741D16-2T motherboard LGA 4677 (Socket E) EEB - Back to the Office recorded price
Recorded retailer listing: This is a dated Back to the Office price, not an automatically refreshed offer. Check delivery and availability with the retailer.

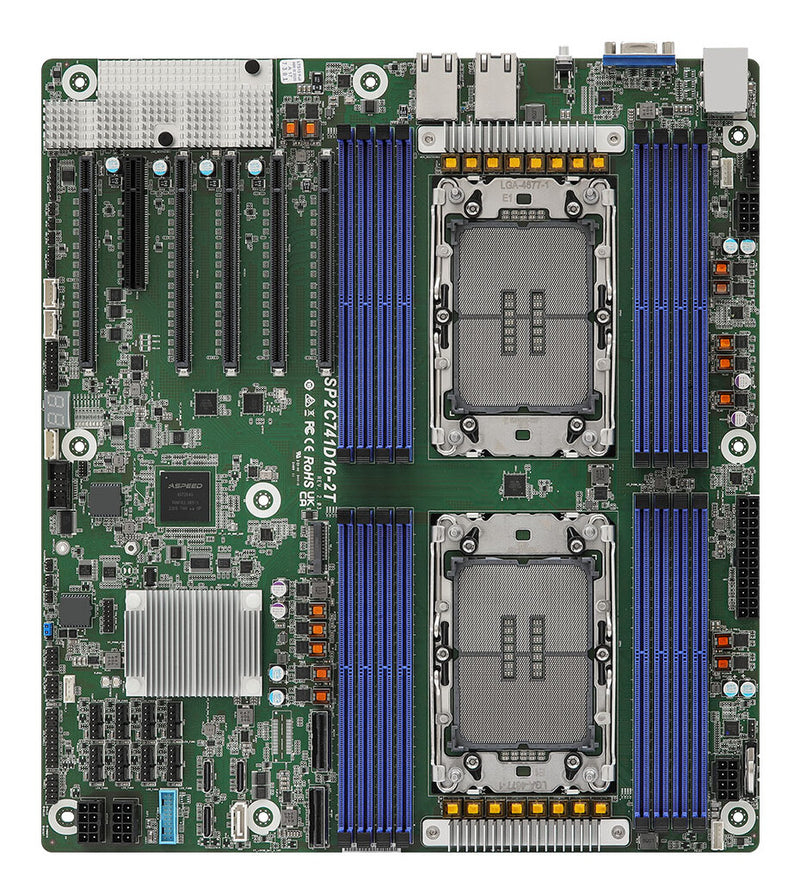

Asrock SP2C741D16-2T motherboard LGA 4677 (Socket E) EEB
ASRock Electronics & Computing
Product description
TGPIO supporting precise time synchronization between devices. EEB (12.12'' x 13.3"). Supports 5th and 4th Gen Intel® Xeon® Scalable Processors. 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS. 5 PCIe5.0 / CXL1.1 x16. 1 PCIe5.0 x8. 2 MCIO (PCIE5.0 x8). 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s). Supports 1 M.2 (PCIe5.0 x4). Up to 13 SATA 6Gb/s. 2 RJ45 (10GbE) by Intel X710-AT2. Remote management (IPMI). Asrock Rack - SP2C741D16-2T. Processor. Supported processor sockets. LGA 4677 (Socket E). Compatible processor series. Intel® Xeon®. Processor socket. LGA 4677 (Socket E). Processor manufacturer. Intel. Memory. Supported memory clock speed (max). 5600 MHz. Memory voltage. 1.1 V. Number of memory slots. 16. Supported memory types. DDR5-SDRAM. Graphics. On-board graphics card model. Aspeed AST2600. Internal I/O. TPM connector. Yes. EPS power connector (8-pin). Yes. ATX Power connector (24-pin). Yes. Number of SATA III connectors. 4. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 2. Rear panel I/O ports. VGA (D-Sub) ports quantity. 1. IPMI LAN (RJ-45) port. Yes. Ethernet LAN (RJ-45) ports. 2. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. Network. Wi-Fi. No. Ethernet LAN. Yes. Features. Compatible operating systems. Microsoft® Windows®- Server 2022 (64 bit)Linux- Red Hat Enterprise Linux Server 8.4 ( 64 bit) / 8.5 ( 64 bit)- SUSE Enterprise Linux Server 15 SP3 ( 64 bit)- Ubuntu 21.10 (64 bit) / 22.04.2 ( 64 bit)Hypervisor:- VMWare® ESXi 7.0 U3g / 8.0. Motherboard chipset family. Intel. Motherboard form factor. EEB. Expansion slots. Number of M.2 (M) slots. 1. PCI Express OCuLink connectors (NVMe support). 3. PCI Express x16 (Gen 5.x) slots. 5. PCI Express x8 (Gen 5.x) slots. 1. BIOS. System Management BIOS (SMBIOS) version. 3.4. ACPI version. 4.0. BIOS memory size. 512 Mbit. BIOS type. UEFI AMI. Operational conditions. Storage relative humidity (H-H). 20 - 90%. Operating temperature (T-T). 10 - 35 °C. Storage temperature (T-T). -40 - 70 °C. Weight & dimensions. Depth. 337
Retailer feed snapshot. Not live-checked or automatically refreshed. Confirm delivery, stock and final price at the retailer.
Retailer feed snapshot. Not live-checked or automatically refreshed. Confirm delivery, stock and final price at the retailer.
Back to the Office
United Kingdom · GBP
Recorded item price
£1,030.99
Not automatically refreshed
Delivery: Charges unknown; not included above.
Availability: Feed reports available; confirm current stock at the retailer.
Condition: Check with retailer.
Listings marked as checked daily are refreshed on a schedule. Other recorded prices are not automatically refreshed. Unconfirmed delivery costs are excluded. Overseas availability is not implied. Other-country offer conversions use approximate exchange rates. Always confirm the final price at the retailer.
