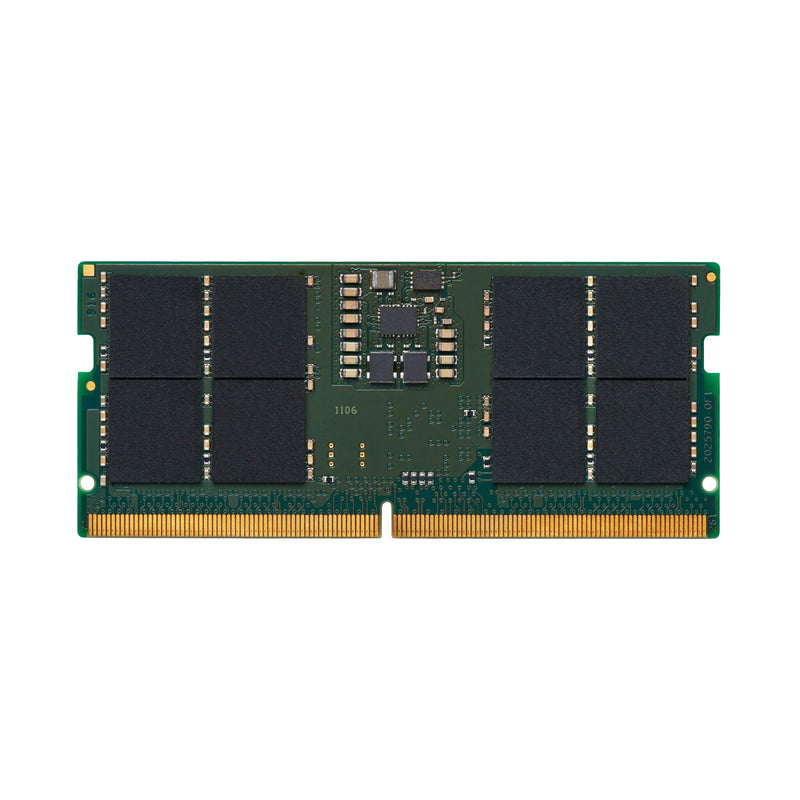

Laptop 16 GB DDR5 5600 MT/s. 262-pin SO-DIMM 1 x 16 GB. CAS latency: 46. 1.1 V. ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.. Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC PCB: Height 1.18” (30.00mm) RoHS Compliant and Halogen-Free. Features. Buffered memory type. Unregistered (unbuffered). Internal memory. 16 GB. Memory layout (modules x size). 1 x 16 GB. Internal memory type. DDR5. Component for. Laptop. Memory form factor. 262-pin SO-DIMM. ECC. No. On-Die ECC. Yes. CAS latency. 46. Memory data transfer rate. 5600 MT/s. Memory ranking. 1. Memory voltage. 1.1 V. Module configuration. 2048M x 64. SPD profile. Yes. Lead plating. Gold. Operational conditions. Operating temperature (T-T). 0 - 85 °C. Storage temperature (T-T). -55 - 100 °C. General. Product family. ValueRAM. Sustainability. Doesn't contain. Halogen. Technical details. Compliance certificates. RoHS. Weight & dimensions. Width. 69.6 mm. Height. 30 mm. leaflet
