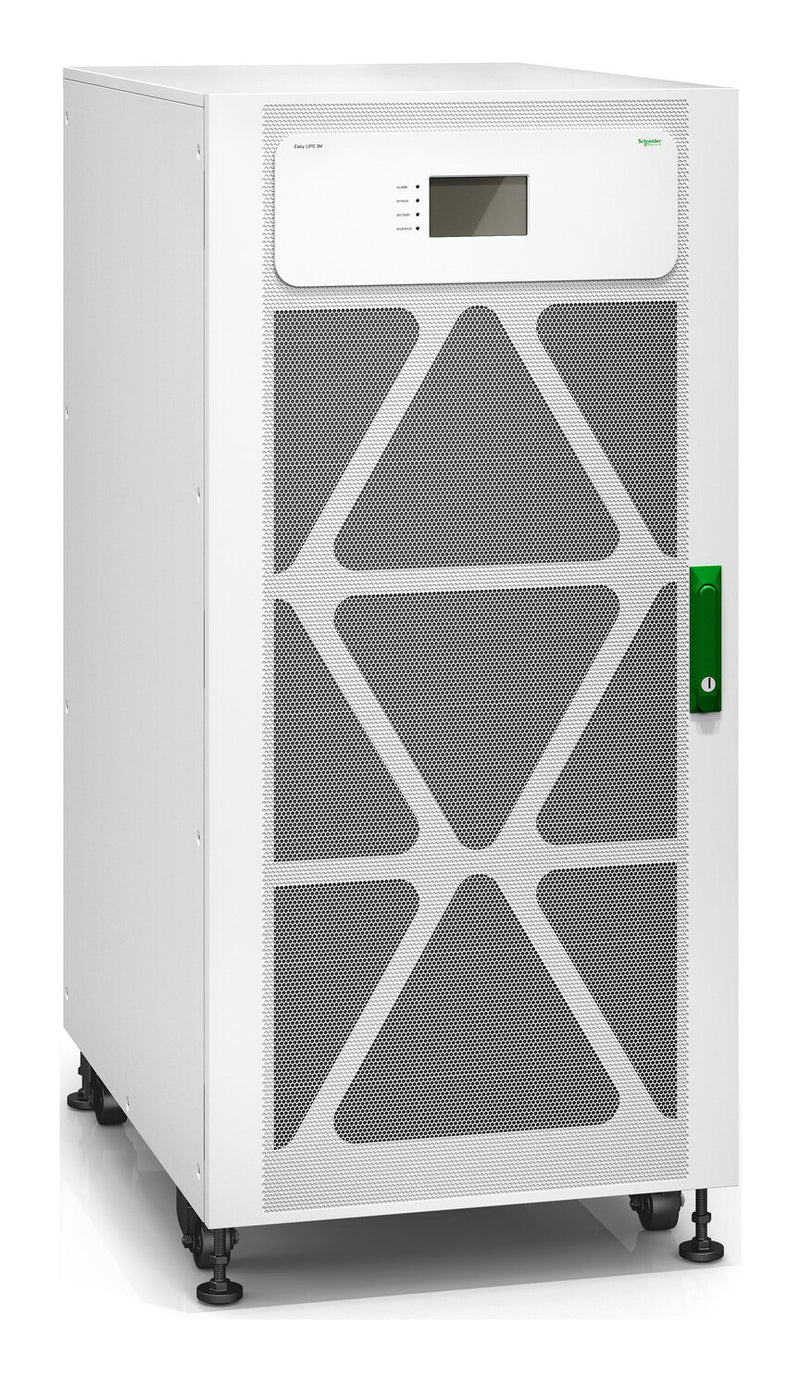

Parallel up to 6 Easy UPS 3M UPSs for capacity or redundancy. Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets. IP20 rated (IP30 with optional kit). Highly efficient, easy-to-deploy 10 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. See the battery runtime chart for details.. Features. UPS topology. Double-conversion (Online). Output power capacity. 10 kVA. Output power. 10000 W. Waveform. Sine. Input operation voltage (min). 380 V. Input operation voltage (max). 415 V. Input frequency. 40 - 70 Hz. Output frequency. 50/60 Hz. Output voltage regulation. 1%. Maximum current. 336 A. Heat dissipation. 10000 BTU/h. Number of input phases. 3. Number of output phases. 3. Power factor. 0.7. Input current Total Harmonic Distortion (THD). 3%. Noise level. 72 dB. Battery. Battery technology. Sealed Lead Acid (VRLA). Design. Product colour. White. Control type. Touch. Display type. LCD. International Protection (IP) code. IP20. Operational conditions. Operating temperature (T-T). 0 - 40 °C. Storage temperature (T-T). -25 - 55 °C. Operating relative humidity (H-H). 0 - 95%. Storage relative humidity (H-H). 0 - 95%. Operating altitude. 0 - 1500 m. Non-operating altitude. 0 - 15240 m. Power. Input current (max). 336 A. Technical details. Battery included. No. Minimum order quantity. 1 pc(s). Packaging content. Manual. Yes. Weight & dimensions. Width. 600 mm. Depth. 850 mm. Height. 1300 mm. Weight. 304 kg. Packaging data. Package width. 975 mm. Package depth. 725 mm. Package height. 150 mm. Package weight. 338 kg. Logistics data. Warranty period. 1 year(s)
